Showcasing the "Radar with Laser-Guided System" at Tech Expo 2024

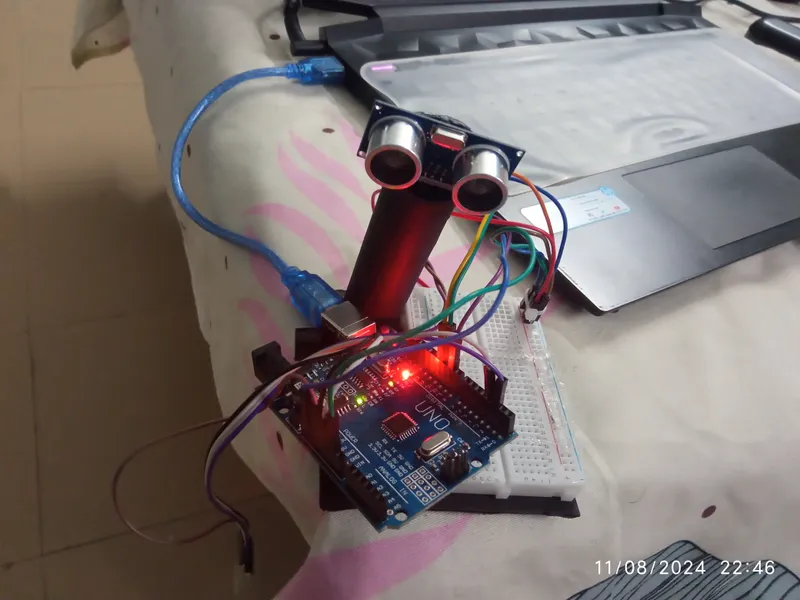

# Showcasing the "Radar with Laser-Guided System" at Tech Expo 2024 📍 **Venue:** Babu Banarasi Das University, Lucknow 📅 **Event:** Tech Expo 2024 🏢 **Organized by:** School of Engineering, BBD University 🚀 **Project:** Radar with Laser-Guided System --- ## Overview One of the most exciting milestones in my engineering journey was showcasing my project, **Radar with Laser-Guided System**, at Tech Expo 2024 organized by the School of Engineering, Babu Banarasi Das University. The project was designed as an intelligent embedded system capable of detecting nearby objects using ultrasonic sensing, visualizing them on a radar interface in real time, and activating a laser-guided response when an object remained in the critical zone for a predefined duration. Presenting this project to faculty members, judges, and fellow students provided an excellent opportunity to demonstrate practical applications of embedded systems, automation, and real-time data visualization. --- ## About the Project The Radar with Laser-Guided System combines embedded electronics, sensor technology, and software visualization into a single intelligent monitoring solution. The system continuously scans its surroundings using an ultrasonic sensor, calculates object distance, and displays live radar information through a custom-built graphical interface developed using **Processing**. To simulate an automated security mechanism, the system activates a laser only when an object remains within the critical detection zone for more than three seconds. --- ## System Workflow The project follows a multi-stage detection and response mechanism: - 🔵 **Normal Mode (> 200 cm):** Blue LED indicates safe conditions; continuous environmental monitoring. - 🟡 **Warning Mode (50–100 cm):** Yellow LED turns on; increased sampling rate for approaching objects. - 🔴 **Critical Mode (< 50 cm):** Flashing Red LED and Buzzer alert activated for immediate danger notification. - 🔦 **Laser Lock-On:** If an object remains inside the critical zone for >3 seconds, the system automatically activates the laser for 5 seconds as an automated precision response. --- ## Key Features ### 📏 Intelligent Distance Measurement Uses ultrasonic Time-of-Flight (ToF) calculations to determine object distance with high accuracy while minimizing sensor noise. ### 🔦 Automated Laser Guidance Instead of activating immediately, the laser uses a time-based trigger, ensuring activation only after continuous detection inside the danger zone. ### 📡 Real-Time Telemetry Provides live serial communication, distance measurements, system status updates, and hardware-to-software synchronization. ### 📊 Radar Visualization A custom interface built using **Processing** displays: - Rotating radar sweep - Live object tracking - Distance indicators & dynamic radar blips - Real-time telemetry overlay --- ## Technology Stack ### 💻 Software - Arduino IDE - Processing (GUI & Radar Visuals) - Embedded C/C++ ### 🔧 Hardware - Arduino Uno - Ultrasonic Sensor (HC-SR04) - Laser Module & Servo Motor - LEDs (Blue, Yellow, Red) & Buzzer - Bluetooth Module & Breadboard Components --- ## Skills I Gained Developing this project strengthened several practical engineering skills: ### 🔹 Embedded Systems - Sensor integration & hardware interfacing - Non-blocking programming using `millis()` - Event-driven logic ### 🔹 Signal Processing - Distance calculation & sensor filtering - Threshold-based automation ### 🔹 GUI Development - Serial communication & data visualization - Radar interface development using Processing ### 🔹 System Integration - Synchronizing hardware and software - Debugging real-time embedded applications --- ## Real-World Applications This project demonstrates concepts applicable to several domains: - 🛡️ Security and Intrusion Detection - 🤖 Autonomous Robotics - 🏭 Industrial Safety Systems - 🚗 Obstacle Detection - 📡 Smart Surveillance & Automated Warning Systems --- ## My Key Takeaways Building this project taught me far more than programming hardware: 1. **Embedded systems** require both hardware and software expertise. 2. **Real-time programming** demands efficient logic and timing. 3. **Data visualization** improves system usability. 4. **Small engineering projects** can simulate real industrial applications. 5. **Innovation comes** from combining multiple technologies into one practical solution. --- ## Looking Ahead Presenting the Radar with Laser-Guided System at Tech Expo 2024 was an important milestone in my engineering journey. It strengthened my understanding of embedded systems, automation, and intelligent sensing while improving my confidence in presenting technical projects before faculty members and fellow students. This project reflects my passion for building solutions that bridge hardware, software, and real-world problem solving, and it continues to inspire me as I explore IoT, Robotics, Artificial Intelligence, and Embedded Systems. --- ### 📸 Event Gallery *Proud to showcase my Radar with Laser-Guided System at Tech Expo 2024 at Babu Banarasi Das University. The project combined ultrasonic sensing, real-time radar visualization, and an automated laser-guided response system, demonstrating how embedded systems and software can work together to create intelligent monitoring solutions.*
